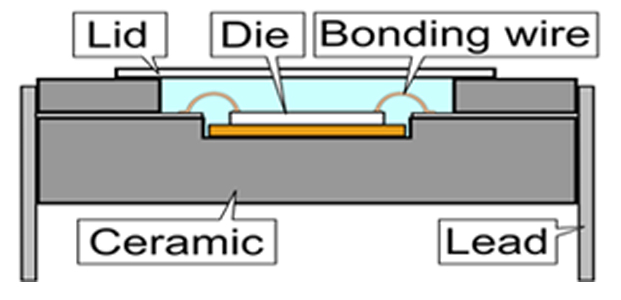

Ceramic Package

It is material made of the mineral such as alumina or zirconia sintered under high temperatures. It is used as the casing for the sensor, the high frequency part, the high power LED, the medical electronic part and the military electronic part. Since it is highly wear resistant, heat resistant, EMF shielding and corrosion resistant, it is used in highly reliable electronic parts.

Ceramic Package Features and Advantages

  1. In general, it is used in applications required of high performance and reliability.
  2. It is has high hardness and high modulus of elasticity, it is highly corrosion resistant and highly wear resistance and has a relatively low thermal expansion coefficient.
  3. It has good high frequency properties, it is highly heat resistant and it is relatively easy to implement various temperature properties.
  4. As it does not have polarity, it is favorable for board mounting.
  5. It is increasingly used as set products such as mobile communication devices and digital home appliances which are digitalized, use higher frequency and become smaller.

Ceramic Material

T.C.E[10-6/K]
Alumina MDTB-900 6.7
R.T. -400C
MDTW-900 6.8
R.T. -400C
ALN 4.4
R.T. -400C
Polyimide
(REF.)		 20-70
R.T. -300C
Si
(REF.)		 3.6
R.T. -400C
GaAs
(REF.)		 6.0
R.T. -400C
Thermal Conductivity[W/mk, R.T.]
Alumina MDTB-900 17
MDTW-900 17
ALN 170
Polyimide
(REF.)		 0.2
Si
(REF.)		 125
GaAs
(REF.)		 54
Yung’s Modulus[GPa]
Alumina MDTB-900 280
MDTW-900 280
ALN 350
Polyimide
(REF.)		 3
Si
(REF.)		 -
GaAs
(REF.)		 -
Bending Strength[MPa]
Alumina MDTB-900 350
MDTW-900 350
ALN 350
Polyimide
(REF.)		 -
Si
(REF.)		 100
GaAs
(REF.)		 -
∂-Particle Count[Count/cm2-h]
Alumina MDTB-900 0.1
MDTW-900 0.1
ALN 0.1
Polyimide
(REF.)		 -
Si
(REF.)		 -
GaAs
(REF.)		 -
Dielectric / Constant[1MHz R.T. / 10GHz R.T.]
Alumina MDTB-900 9.4
8.8
MDTW-900 9.8
9.0
ALN 8.9
8.5
Polyimide
(REF.)		 3.2
-
Si
(REF.)		 12.0
-
GaAs
(REF.)		 13.1
-
Dielectric / Loss[1MHz R.T. / 10GHz R.T.]
Alumina MDTB-900 5×10-4
1×10-3
MDTW-900 4×10-4
1×10-3
ALN 3×10-4
3×10-3
Polyimide
(REF.)		 6×10-3
-
Si
(REF.)		 -
GaAs
(REF.)		 -
Volume Resistivity[Ωm]
Alumina MDTB-900 1012
MDTW-900 1012
ALN 1012
Polyimide
(REF.)		 1012
Si
(REF.)		 108
GaAs
(REF.)		 10-8 10-6
Breakdown Voltage[KV/mm]
Alumina MDTB-900 15
MDTW-900 15
ALN 15
Polyimide
(REF.)		 300
Si
(REF.)		 -
GaAs
(REF.)		 -
