Vehicle load support
Shock absorbing function ⇒ Vehicle ride comfort (NVH)
Tire road contact function ⇒ Vehicle ride and handling (R&H)
Impacting shock reduction when passing speed bumps
Road surface vibration insulation (NVH enhancement)
Steering performance enhancement when turning
Body running stability enhancement on quick braking.

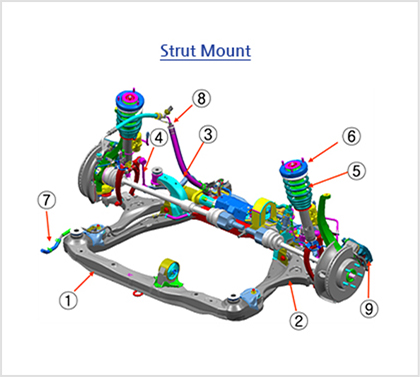

| Item | Product Name | Function |
|---|---|---|
| ① | FR SUBFRAME COMP | It supports the lower structure, the engine and the transmission of the vehicle and absorbs their shock. |
| ② | LOWER ARM | It supports the strut and the axle and absorbs their shock. |
| ③ | FR STAB BAR ASSY | These suppress rolling of the vehicle. |
| ④ | LINK ASSY-STAB | |
| ⑤ | FR SPRING | Shock absorbers. These support the body and mitigate vertical impacts. |
| ⑥ | BRKT ASSY-STRUT, FR | |
| ⑦ | RTN HOSE & TUBE ASSY | The working fluid passage at the other side of pressurizing when steering. |
| ⑧ | PRESSURE HOSE COMP. | The working fluid passage at the pressurizing side when steering. |
| ⑨ | FR BRAKE ASSY | Brakes |

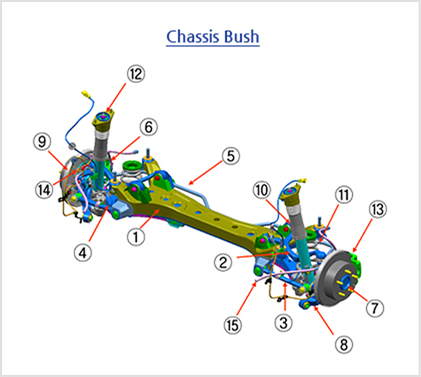

| Item | Product Name | Function |
|---|---|---|
| ① | RR X/MBR ASSY | It supports the lower structure, the engine and the transmission of the vehicle and absorbs their shock. |
| ② | RR UPR ARM | These support the strut and the axle and absorb their shock. |
| ③ | RR ASSIST ARM | |
| ④ | RR LWR ARM | |
| ⑤ | RR STAB BAR ASSY | These suppress rolling of the vehicle. |
| ⑥ | LINK ASSY-STAB | |
| ⑦ | RR HUB BEAR’G | The medium of the drive shaft and the entire wheel. |
| ⑧ | RR CARRIER ASSY | Steering function and driving unit connection |
| ⑨ | RR DISC | Braking disc |
| ⑩ | RR S/ABS ASSY | The shock absorber. It supports the body and mitigates vertical impacts. |
| ⑪ | RR SPRING | Large displacement control |
| ⑫ | RR S/ABS MTG BRKT ASSY |
Joined with the car body, it ensures the strut mobility. |
| ⑬ | RR BRAKE ASSY | Brakes |
| ⑭ | RR PARK’G BRAKE ASSY | |
| ⑮ | P/CABLE ASSY | It delivers braking of the parking brake. |
